Curtain Wall Glazing Plans: The Definitive Technical Pillar Article

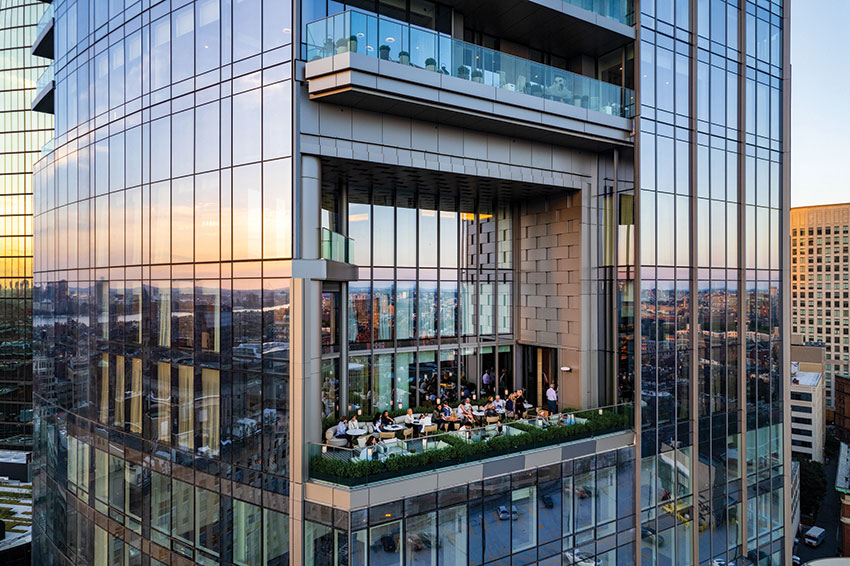

The engineering of a modern building’s exterior skin is a departure from the millennia-old tradition of load-bearing masonry. In the contemporary architectural landscape, the “curtain wall” represents a sophisticated, non-structural cladding system that protects the building’s interior from the elements while supporting only its own weight and the environmental loads imposed upon it. Curtain Wall Glazing Plans. This shift from massive, opaque walls to transparent, high-performance membranes has necessitated a level of technical foresight that borders on the forensic.

When we discuss the integration of glass and aluminum at scale, we are navigating a landscape defined by movement. A high-rise tower is not a static object; it sways under wind loads, settles into its foundations, and expands or contracts with every thermal cycle. Consequently, the development of comprehensive curtain wall glazing plans is less about choosing a material and more about managing these inevitable physical shifts. The success of a building envelope is measured in decades, and a failure to account for the minute chemistry of a sealant or the precise deflection of a floor slab can lead to systemic failures that are prohibitively expensive to remediate.

Beyond mere protection, the curtain wall has become a primary driver of a building’s energy profile and occupant well-being. The selection of glass coatings, the thermal break of the aluminum extrusions, and the strategic use of opacifiers or shading devices are no longer secondary aesthetic concerns. They are core components of a mechanical strategy designed to reduce cooling loads and maximize natural light. This duality—the envelope as both a structural shield and a performance filter—requires an editorialized approach to planning that balances architectural ambition with the cold reality of physics.

Understanding curtain wall glazing plans

To effectively develop curtain wall glazing plans, one must view the envelope as a holistic system rather than a collection of parts. A common misunderstanding among project stakeholders is the belief that the “glazing” and the “curtain wall” are separate entities. In truth, the glass and its framing are deeply interdependent; the performance of the most expensive triple-glazed insulated unit is rendered moot if the framing system allows for excessive air infiltration or thermal bridging at the perimeter anchors.

A primary risk in oversimplifying these plans is the “commodity trap.” When developers view the curtain wall as a line item to be value-engineered down to the lowest bidder, they often ignore the long-term operational costs. Curtain wall glazing plans must account for the specific wind pressures of the building’s micro-climate, the seismic zone requirements, and the specific daylighting goals of the interior spaces. A plan that works for a low-rise office park in a temperate region will fail spectacularly if applied to a coastal high-rise subject to salt-spray corrosion and hurricane-force winds.

Furthermore, a comprehensive plan must reconcile the “sightlines”—the visible width of the aluminum mullions—with the structural requirements of the glass spans. There is a persistent tension between the architect’s desire for “weightlessness” and the engineer’s requirement for stiffness. Navigating this tension requires a multi-perspective approach that considers the lifecycle of the building, from the initial factory fabrication to the eventual replacement of the glazing units fifty years into the future.

Deep Contextual Background: The Industrialization of Transparency

The curtain wall is a direct byproduct of the Industrial Revolution and the birth of the steel-framed skyscraper. Before the late 19th century, windows were holes punched into thick, load-bearing walls. The development of the “Chicago Frame” allowed architects to move the support structure inside the building, freeing the exterior wall to become a light “curtain.” Early examples, such as the Hallidie Building in San Francisco, utilized simple iron frames, but these were thermally inefficient and prone to leaking.

The mid-20th century saw the introduction of aluminum as the preferred framing material due to its high strength-to-weight ratio and natural corrosion resistance. The “International Style” championed by Mies van der Rohe turned the curtain wall into a global symbol of corporate modernism. However, these early glass towers were often thermal disasters, requiring massive HVAC systems to counteract the solar gain and heat loss associated with single-pane glass.

Today, we have entered the era of the “High-Performance Skin.” Modern systemic evolution is focused on “Dynamic Envelopes”—systems that react to the environment through integrated shading, photovoltaic glass, or vacuum-insulated panels. The current landscape of curtain wall glazing plans is defined by a shift away from pure transparency toward a nuanced management of heat, light, and carbon footprint.

Conceptual Frameworks and Mental Models

To design a resilient envelope, professionals rely on several fundamental frameworks that transcend specific product brands.

The Pressure-Equalized Rainscreen Principle

This is the most critical mental model for water management. It assumes that water will eventually bypass the outer seals. Therefore, the system is designed with an internal air chamber that is vented to the outside. This equalizes the pressure between the exterior and the interior of the frame, preventing wind from “sucking” water into the building. If the pressure is equal, the water simply drains out through gravity.

The Continuous Thermal Line

A successful plan must be able to trace a single, uninterrupted line of insulation around the entire building. Any point where a metal component crosses this line without a “thermal break” (typically a low-conductivity polyamide strip) becomes a thermal bridge. These bridges cause condensation, mold, and energy loss.

The Differential Movement Matrix

This model accounts for the three types of movement a curtain wall must endure:

1. Dead Load: The weight of the glass and aluminum.

2. Live Load: The movement of people and furniture causing the floors to deflect.

3. Thermal Expansion: The aluminum frame expanding in the sun while the building’s concrete or steel core remains stable.

Key Categories of Curtain Wall Variations

1. Stick-Built Systems

Components are shipped to the site as “sticks” and glass, then assembled and glazed in the field.

• Trade-off: Lower shipping costs and high flexibility for complex geometries vs. higher on-site labor costs and increased risk of quality control issues due to weather.

2. Unitized Systems

Large panels (typically one story tall and 5-8 feet wide) are fully assembled and glazed in a factory before being shipped to the site and “hung” on the building.

• Trade-off: Extreme precision, speed of installation, and better quality control vs. high logistical complexity and higher upfront material costs.

3. Structural Silicone Glazing (SSG)

The glass is bonded to the frame using high-strength silicone, eliminating the need for exterior metal caps.

• Trade-off: A sleek, “all-glass” aesthetic and better thermal performance vs. more complex maintenance and rigorous factory-bonding requirements.

Comparison of Major Curtain Wall Types

Feature	Stick-Built	Unitized	Structural Silicone (SSG)
Installation Speed	Slow	Very Fast	Moderate
Factory Quality Control	Low	High	Very High
Site Labor Requirement	High	Low	Moderate
Initial Cost	Moderate	High	High
Aesthetic Result	Framed	Framed	Seamless

Decision Logic for Implementation

The choice between these categories is usually driven by building height and site access. For a 50-story tower in a dense urban core, Unitized is almost always the “best” option because it requires no exterior scaffolding and allows the building to be “dried in” floor by floor. For a 3-story boutique museum with unique angles, Stick-Built may be the only way to handle the geometric complexity.

Real-World Scenarios and Failure Modes Curtain Wall Glazing Plans

Scenario A: The Coastal “Stack Effect”

In a tall coastal building, the temperature difference between the bottom and top of the building creates a massive pressure differential (stack effect).

• Failure Mode: If the curtain wall glazing plans do not include robust internal seals, this pressure can force humid, salty air through the frame, causing internal corrosion of the anchors and mold growth in the floor slabs.

• Decision Point: Increasing the “air-tightness” specification beyond standard code and using high-grade stainless steel anchors.

Scenario B: The Reflective “Death Ray”

A curved curtain wall design focuses sunlight into a concentrated beam on a neighboring park or building.

• Constraint: Aesthetic ambition vs. public safety.

• Solution: Using diffuse coatings or changing the “camber” of the glass panels to scatter the light.

• Failure Mode: Melted car parts and uninhabitable public spaces (as seen in several high-profile London and Vegas towers).

Scenario C: Seismic Floor Sway

A building in a high-seismic zone (like Tokyo or Los Angeles) experiences significant lateral movement.

• Constraint: The glass must not shatter as the building leans.

• Solution: Designing “deep pockets” in the aluminum frames that allow the glass to slide several inches without hitting the metal.

Planning, Cost, and Resource Dynamics

The curtain wall is often the single most expensive trade in a high-rise project, frequently accounting for 15-25% of the total construction budget.

Direct costs are easily identified (aluminum extrusions, glass units, silicone), but indirect costs—such as crane time, off-site storage for unitized panels, and third-party laboratory testing—can often derail a budget if not accounted for in the initial curtain wall glazing plans.

Cost Variability Matrix

Element	Estimated Cost (USD/sq ft)	Variability Factor
Standard Stick-Built	$80 – $130	Number of openings, glass size
Unitized System	$150 – $250	Pre-fabrication complexity
High-Performance Low-E	$25 – $50 (add-on)	Number of silver layers
Triple Glazing	$40 – $80 (add-on)	Weight-bearing requirements

The “opportunity cost” of a poor plan is usually paid in the HVAC budget. A building with a cheap, thermally-leaky curtain wall requires a significantly larger chiller and more ductwork, which not only costs more upfront but also takes away rentable square footage.

Risk Landscape and Failure Modes

The primary risk in curtain wall systems is the “compounding failure”—where a minor manufacturing defect leads to a systemic environmental issue.

• Nickel Sulfide ($NiS$) Spontaneous Breakage: In tempered glass, tiny impurities can expand over time, causing a pane to explode without warning years after installation.

• Sealant Failure: If the silicone is applied to a dirty surface or in improper weather, the bond will fail, leading to glass “creep” or total delamination.

• Thermal Stress Cracks: If the center of a glass pane gets significantly hotter than its shaded edges, the glass can crack. This is common in deeply recessed windows or where interior furniture is placed too close to the glass.

Governance, Maintenance, and Long-Term Adaptation

A curtain wall is a 50-year asset that requires a 100-year perspective. It is not “maintenance-free.”

The Monitoring Checklist

• Annual: Inspect the “weep holes” for blockages. A blocked weep hole is the #1 cause of interior water damage.

• Five-Year: Inspect the perimeter caulking at the transition between the curtain wall and the building’s masonry or roof.

• Ten-Year: Perform an infrared thermography scan to identify failed insulated glass units (IGUs) that have lost their argon gas fill.

Adjustment Triggers

If more than 1% of the glass units in a specific elevation show signs of “fogging” (seal failure) within the first decade, it is a signal of a systemic manufacturing defect rather than a maintenance issue, triggering a legal and engineering review of the entire facade.

Measurement, Tracking, and Evaluation

• Leading Indicators: ASTM E283 (Air Leakage) and ASTM E331 (Water Penetration) test results from the Performance Mock-Up (PMU).

• Lagging Indicators: Energy bills that deviate more than 10% from the predicted energy model.

• Documentation Standards: The “Master Glazing Log”—a digital record of every single pane of glass, its manufacturer, its coating batch, and its location on the building. This is vital for matching glass color during future replacements.

Common Misconceptions and Oversimplifications

• Myth: All “double glazing” is the same.

  • Correction: The “spacer” (the piece between the glass) can be aluminum or “warm-edge” plastic. This choice alone can change the window’s U-value by 20%.

• Myth: Curtain wall is “more dangerous” in a fire.

  • Correction: Modern plans include “fire-safing” (mineral wool and smoke seals) at every floor slab to prevent fire from jumping between floors.

• Myth: You can’t have “openable” windows in a curtain wall.

  • Correction: Custom vents can be glazed in, though they significantly increase the complexity of the water-management system.

• Myth: Reflective glass is the best for privacy.

  • Correction: Reflective glass only provides privacy when it is brighter outside than inside. At night, with the lights on, the building becomes a transparent lantern.

Conclusion: The Crystalline Equilibrium

The development of curtain wall glazing plans is an exercise in technical humility. It requires an acknowledgment that we are attempting to build a permanent structure out of fragile materials (glass) and highly reactive materials (aluminum), all while subjecting them to the chaotic forces of the atmosphere.

The most successful buildings are not necessarily those with the most “innovative” materials, but those where the planning has been the most rigorous. A well-designed curtain wall is a silent performer—it manages light, heat, and moisture so effectively that the building’s occupants never have to think about the wall at all. As we push toward a “Net-Zero” future, the curtain wall will remain the primary battleground for architectural performance, demanding a synthesis of science, art, and long-term governance.
